Products Description
Description:

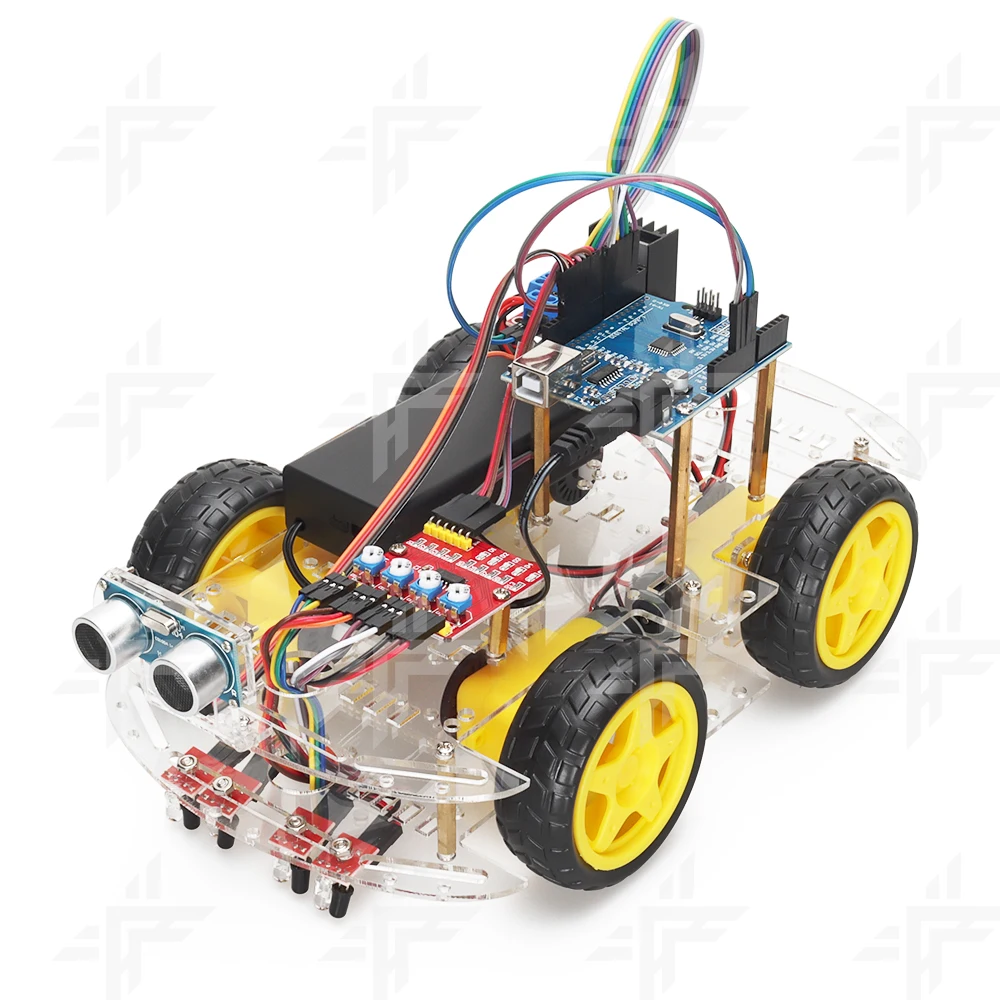

1. This product is a smart car developed based on, which can realize 4-way tracking function and ultrasonic obstacle avoidance function.
2. There are mainly four modules, including infrared signal detection module, main control module, motor drive module, and ultrasonic sensor module.
3. The smart car adopts a welding-free installation design. The components are fixed by copper pillars and screws. The circuit connection between each module is connected by DuPont wire, which is simple and convenient.
Feature：
1. The main control board adopts CH340 development board.
2. The motor drive module uses a typical L298N module to drive a DC motor.
3. The infrared signal detection module uses four infrared light pairs to detect the black line and realize the tracking function.
4. The ultrasonic sensor module uses the HC-SR04 module, through which the distance is measured, so as to realize the ultrasonic obstacle avoidance function.
Customized advantages: 1.It’s suitable for beginners to learn programming. 2.Provide sample service and technical coding support. 3.We provide characteristic services for your LOGO print and design.
Products Paramenters
|
Microprocessor
|
CH340G development board
|
|
Power supply |
2 removable 3.7v lithium batteries (without batteries for shipping)
|
|
Input
|
Infrared sensor (four-channel infrared sensor module)
|
|
Motor
|
DC geared motor
|
|
Motor drive
|
L9110S module
|
|
Input
|
Ultrasonic module (HC-SR04)
|

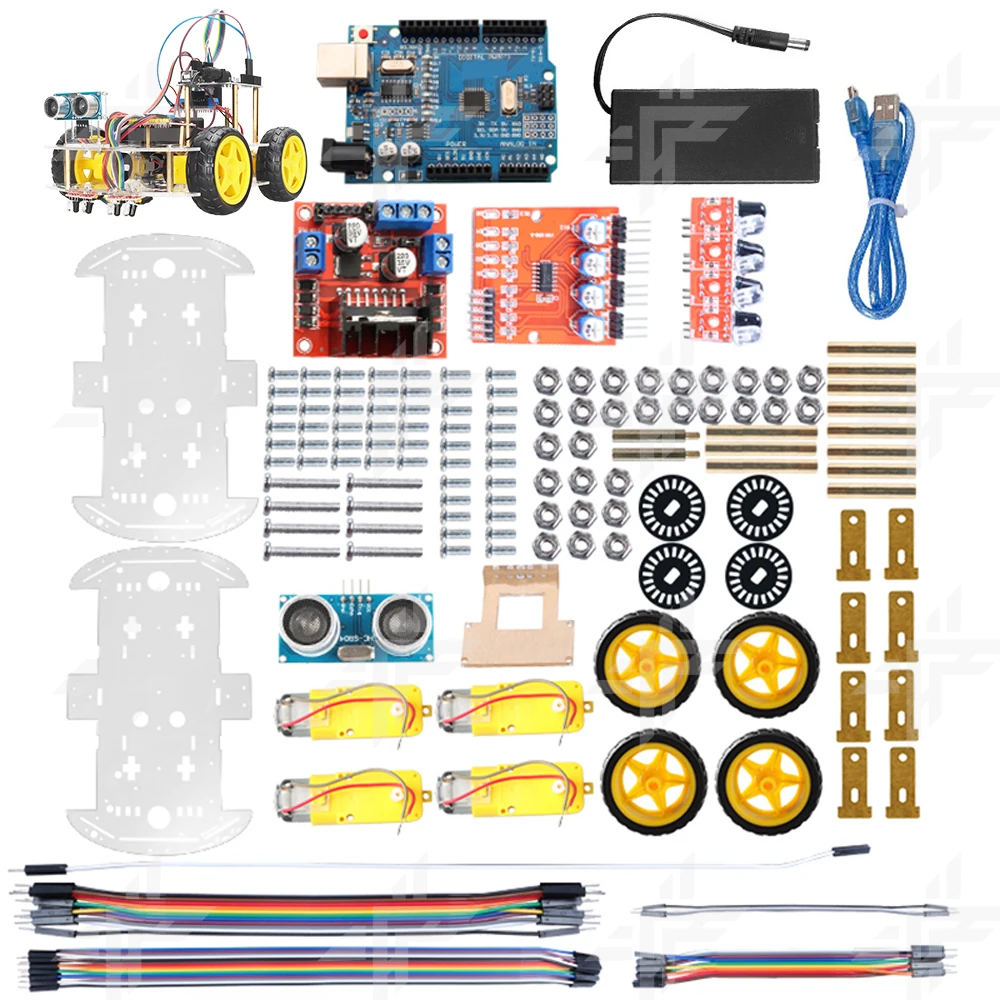

Package list
|
1. CH340G development board *1
|
|
|
2. L9110S driver board *1
|
|
|
3. HC-SR04 Ultrasonic Module *1
|
|
|
4. Four-way tracking module *1
|
|
|
5. DC motor*2
|
|
|
6. Ultrasonic bracket *1
|
|
|
7. Rubber wheel *4
|
|
|
8. Speed measuring code wheel *4
|
|
|
9. T-shaped geared motor fixing bracket *8
|
|
|
10. 18650 battery box *1
|
|
|
11. M3*50 double pass copper pillar *3
|
|
|
12. M3*30 double pass copper pillar *8
|
|
|
13. M3*15+6 copper pillar *2
|
|
|
14. M3 nut *17
|
|
|
15. M3*8 screw *33
|
|
|
16. M3*30 screw *8
|
|
|
17. M2*8 screw *2
|
|
|
18. M2 nut *3
|
|
|
19. M1.6*8 screw *4
|
|
|
20. M1.6 nut *4
|
|
|
21. 30cm male to female Dupont wire *1
|
|
|
22. 20cm male to female Dupont wire *15
|
|
|
23. 20cm male to male Dupont wire *8
|
|
|
24. 10cm male to female Dupont wire *4
|
|
|
25. 10cm male to male Dupont wire *2
|
|
|
26. Acrylic transparent 4-wheel car bottom plate *2
|
Details Images
Zhiyi factory has lowered the barrier to customization.
Bring your ideas to robotic & electronics with our ODM and OEM.
